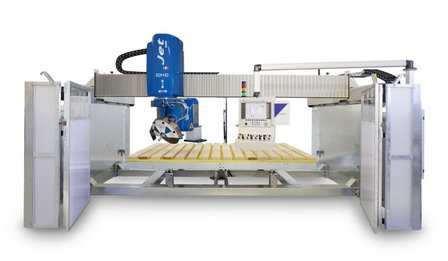

The JET 625 is a 5 interpolated axes CNC bridge mill, with Z axis stroke of 400mm, rotating blade head swiveling from -5 to +365 degrees and tilting from 0 to 90 degrees, to perform orthogonal cuts up to 200mm, ideal machine for performing oblique, circular and elliptical cuts, and almost all types of shaping and digging.
JET 625 CNC allows to obtain accurately shaped products and high productivity thanks to the X and Y axes sliding on linear recirculating ball guides in oil bath.
Brushless motors and high precision gearboxes are used for all axes drive.
The "Tools" version can use diamond tools such as: milling wheels, drill cores, horizontal blade.
Technical schedule | ||
---|---|---|
Max number of interpolated axes | N° | 5 |
Vertical stroke Z axis | mm | 400 |
Blade-carrying head rotation (C axis) | gradi | -5° / 365° |
Blade-carrying head tilting (A axis) | gradi | 0 / 90° |
Working table dimensions | mm | 2400 x 3800 |
Maximum disc diameter | mm | 625 |
Maximum cutting depth | mm | 200 |
Spindle power | kW | 13 / S6 |
Tool rotation with optional Tools / Top ISO 40 | rpm | 0 / 5000 |
Minimum blade diameter | mm | 400 |
Approx. total weight of the machine | kg | 2500 |
